| Quantity: | |
|---|---|
BM-D
ENERPAT

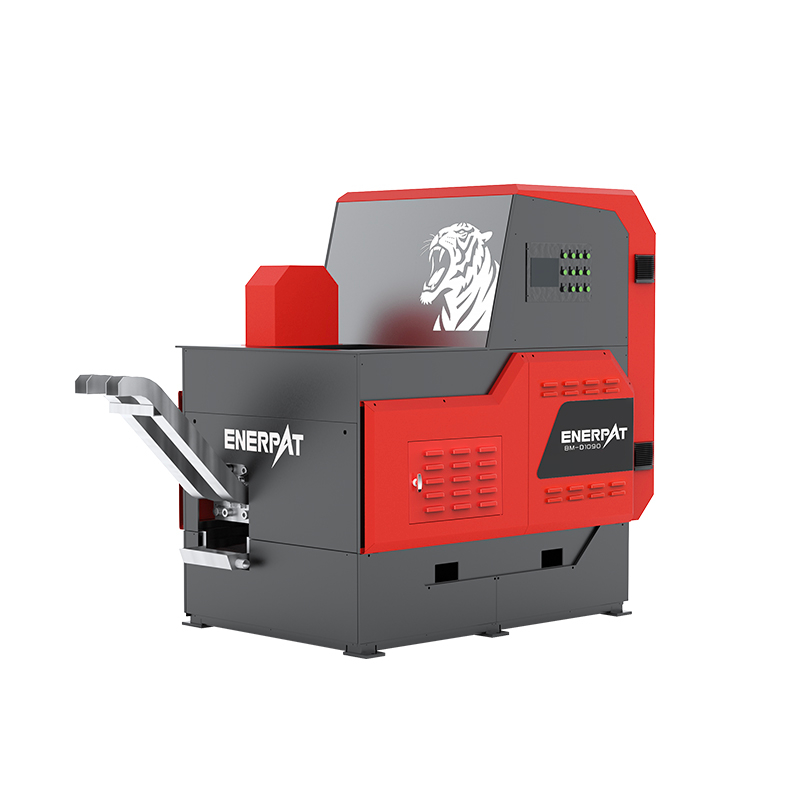

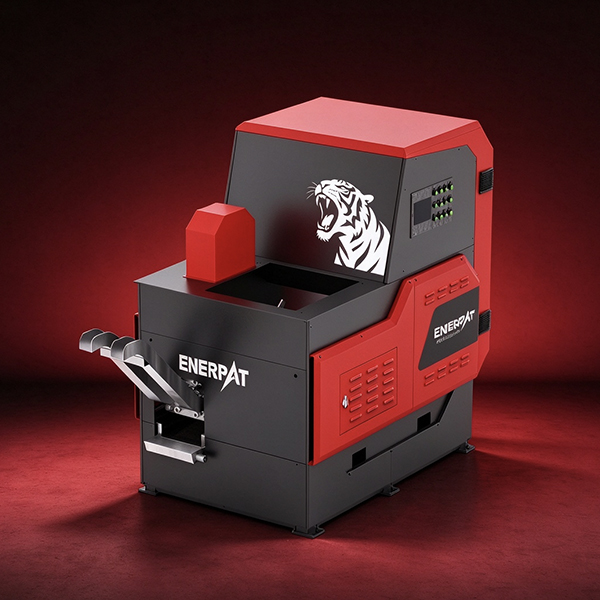

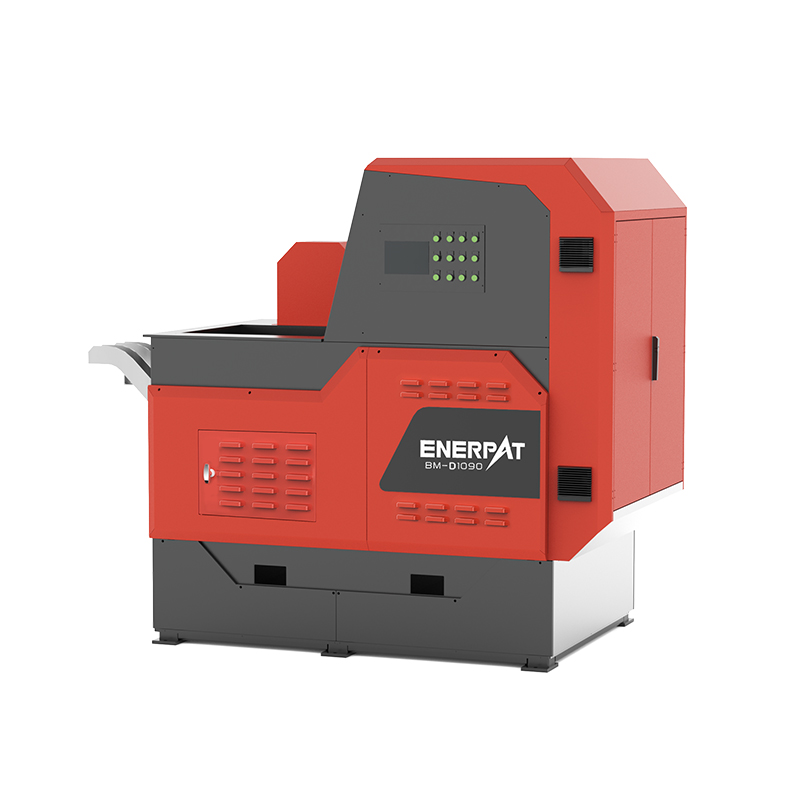

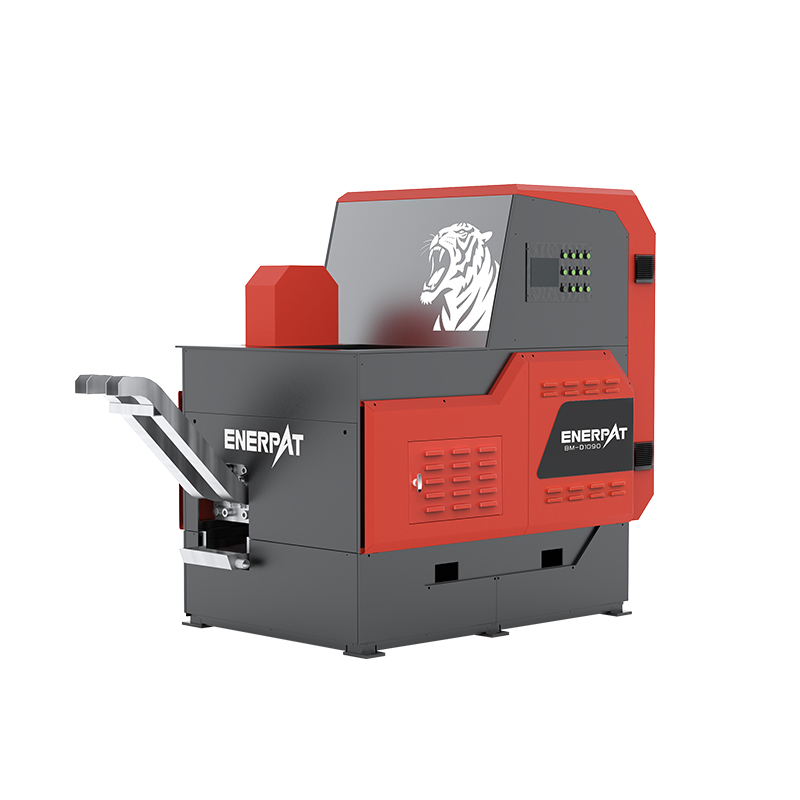

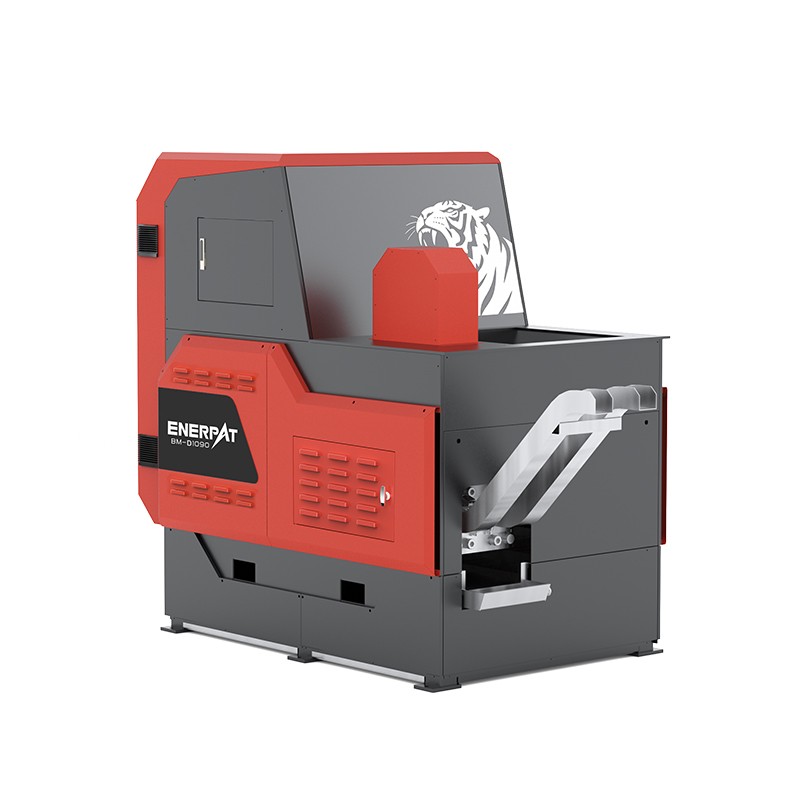

 | ENERPAT Double Output Metal Chip Compactor The ENERPAT BM series Double Output Metal Chip Compactor can compress metal shavings generated during the manufacturing process, including iron shavings, aluminum shavings, stainless steel shavings, copper shavings, and titanium shavings, into solid briquettes in one go. It also separates the cutting fluid from the waste shavings, ensuring that the briquettes remain stationary and leak-free, which enhances space utilization. With a 95% oil recovery rate, it effectively addresses cutting oil pollution, optimizes the workshop environment, and passes environmental inspections. Additionally, it can increase the recycling price by 2000-3000 RMB per ton (using iron shavings as an example), helping companies improve their economic benefits.
The BM Series Metal Swarf Compactor is widely used in the machinery and automotive manufacturing industries, enabling efficient handling and recycling of metal waste. |
Operating Principle
Conveying and Feeding:
The waste shavings are conveyed to the briquetting machine's inlet through a chip conveyor.
Dual Auger Feeding:
The design incorporates both horizontal and vertical dual augers, ensuring that the waste shavings are fed smoothly into the compression chamber.
Hydraulic Compression:
The combination of the hydraulic and electronic control systems compresses the waste into briquette form and ejects it.
Product Specification Sheet
| Model | BM-D1090 | BM-D1612 | BM-D2013 |
| Press Force (tons) | 100 | 160 | 200 |
Bale Diameter (mm) | 90 | 120 | 130 |
Motor (kw) | 11 | 18.5 | 22 |
System Pressure (mpa) | 25 | 25 | 25 |
| Equipment Dimensions (mm) | 2920×1380×2150 | 4250×1740×2730 | 4360×1870×2880 |
| Equipment Weight (kg) | 3000 | 4000 | 5000 |
| Operation Mode | Fully Automatic | Fully Automatic | Fully Automatic |
Material Testing
The ENERPAT BM series Double Output Metal Chip Compactor offers stable performance, allowing for worry-free processing of metal shavings. It is suitable for various types of metal chips, providing efficient integration that supports metal processing and recycling.
Danel
"As a recycling company in Malaysia, we have always been on the lookout for equipment that can optimize our aluminum chip processing workflow. After learning about ENERPAT's BM4015 Metal Chips Briquetter Line, we found that its high efficiency and environmentally friendly features perfectly matched our company's needs. During our on-site visit to the ENERPAT factory, we witnessed the production process and technical capabilities of the equipment firsthand, which gave us great confidence in the BM4015. Since we started using it, the BM4015 has not only significantly improved our production efficiency but also helped us better achieve our environmental sustainability goals. Our collaboration with ENERPAT has been very pleasant, and we look forward to more opportunities to work together in the future."
Chen
"As a manufacturer of elevator components, we need to handle a large volume of iron shavings every day. After comparing several suppliers, we ultimately chose ENERPAT's BM-1612 steel briquette machine line for iron shavings. Since our company is located close to the ENERPAT factory, we had numerous on-site measurements and discussions with the ENERPAT team to ensure a perfect fit for the equipment. The BM-1612 has not only enhanced our iron shavings processing capacity but also significantly saved storage space and reduced transportation costs, which is very important for us. We are also very satisfied with the professional service and quick response from the ENERPAT team. Choosing ENERPAT as our partner was a wise decision, and we will continue to select ENERPAT in the future."
