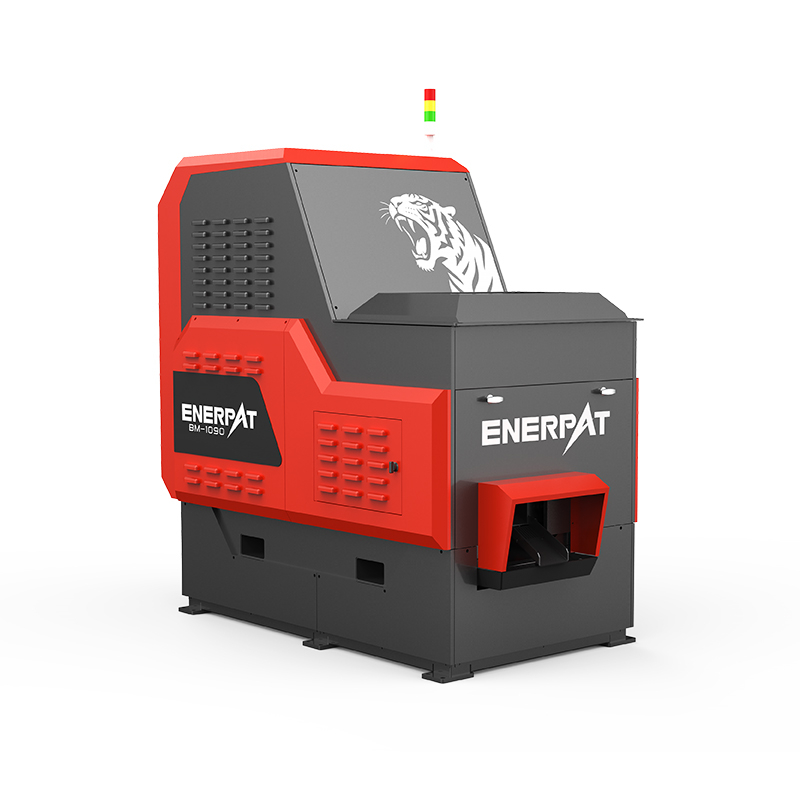

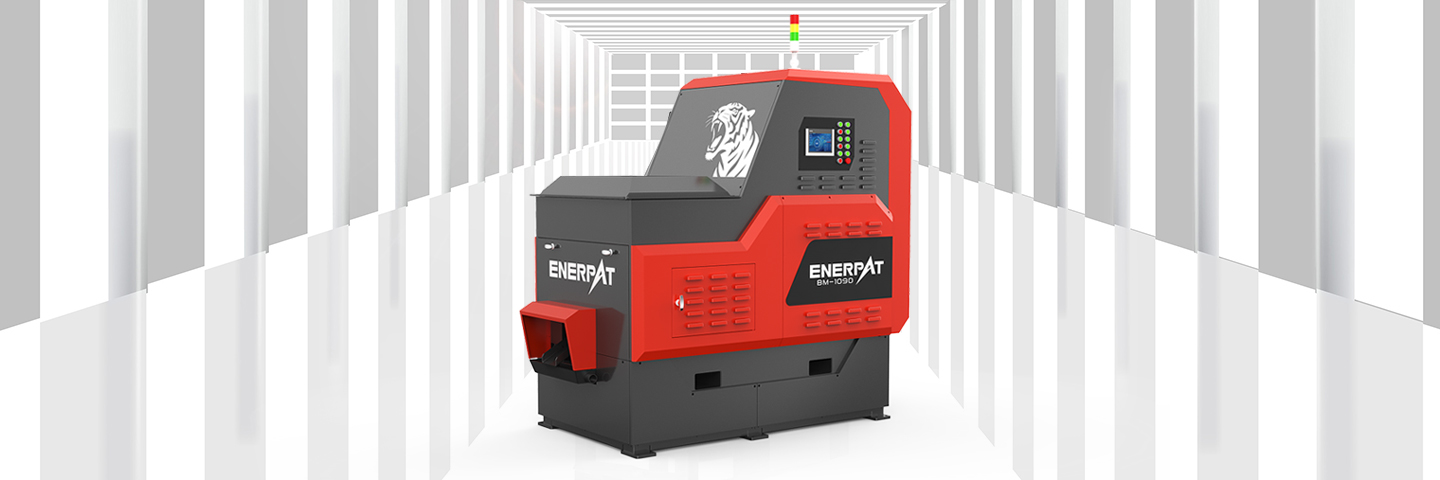

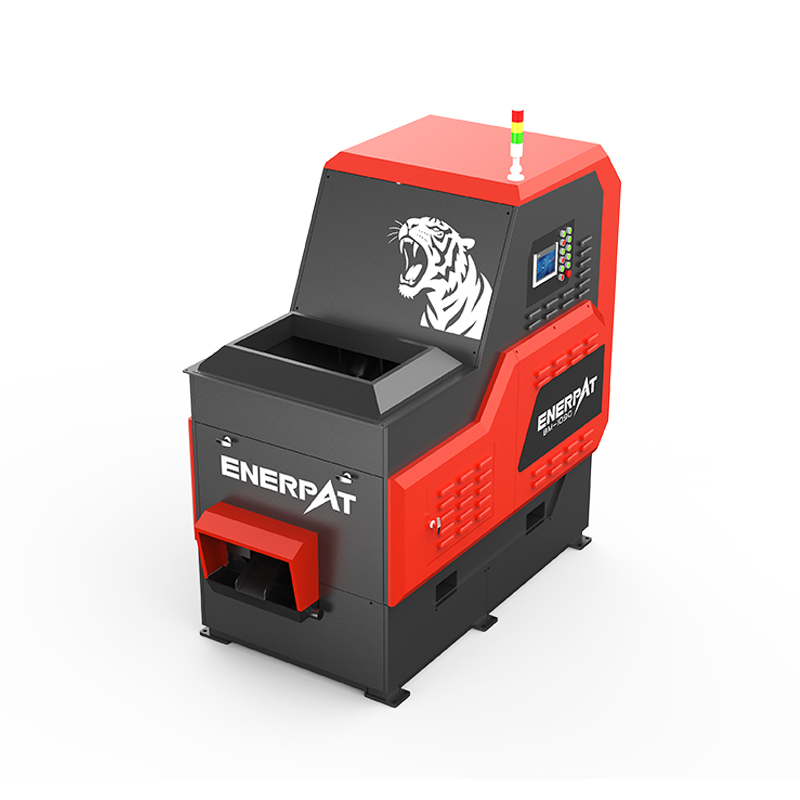

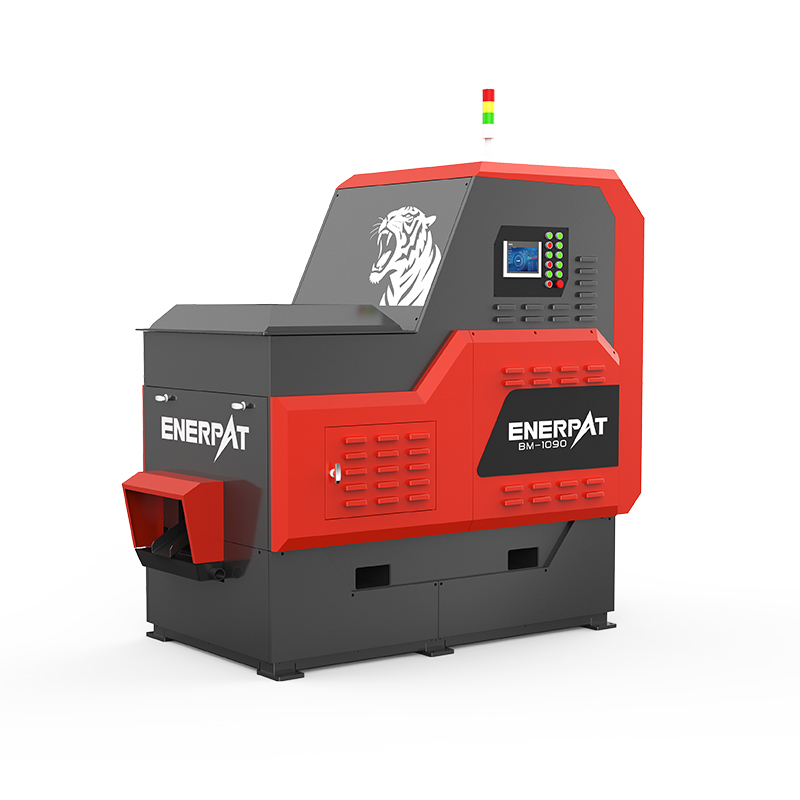

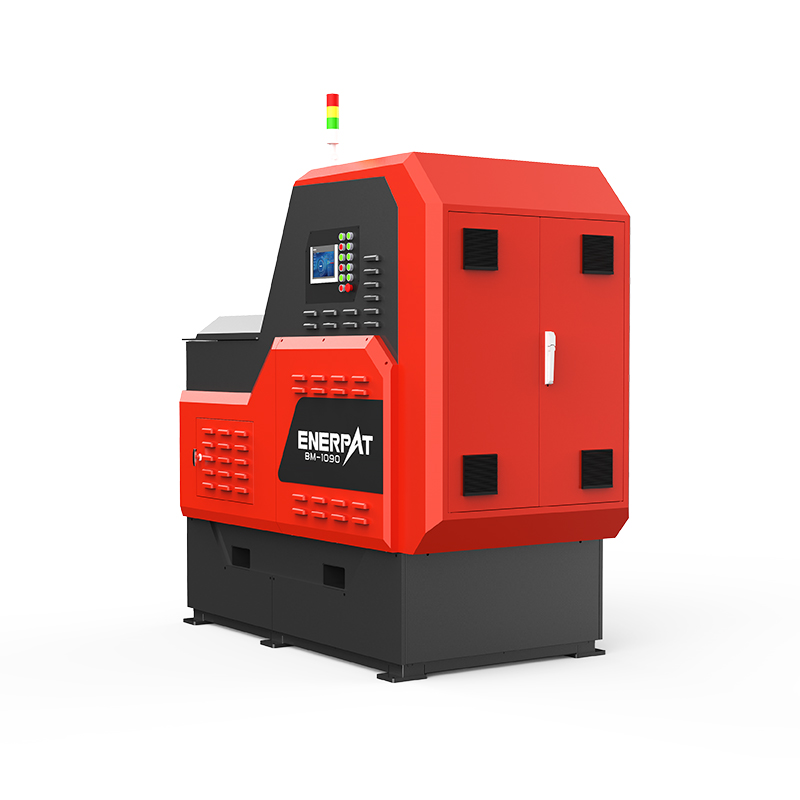

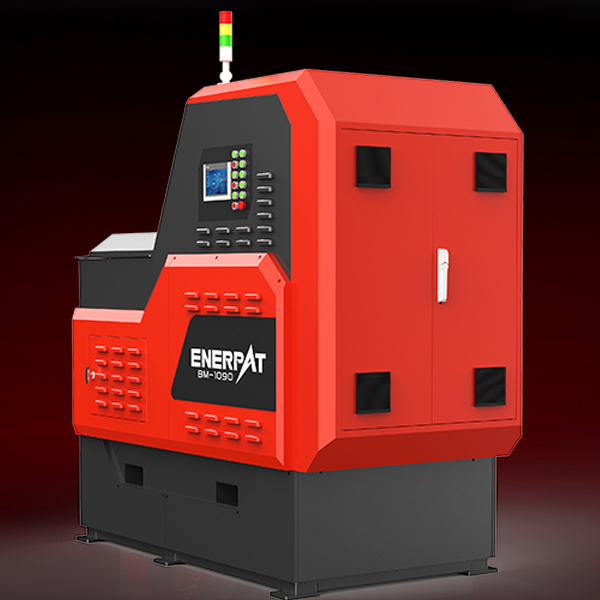

 | ENERPAT Single Output Metal Chip Briquetter (Single Output) ENERPAT BM Series Single Output Metal Chip Briquetter is an efficient metal chip processing machine designed for manufacturing. It can compress various metal alloys, including iron, lNco, aluminum, stainless steel, copper, and titanium chips, into compact pellets, greatly enhancing space utilization and waste processing efficiency. |
Operating Principle
Conveying and Feeding:
The waste shavings are conveyed to the briquetting machine's inlet through a chip conveyor.
Dual Auger Feeding:
The design incorporates both horizontal and vertical dual augers, ensuring that the waste shavings are fed smoothly into the compression chamber.
Hydraulic Compression:
The combination of the hydraulic and electronic control systems compresses the waste into briquette form and ejects it.
Product Specification Sheet
| Model | BM-1090 | BM-1612 | BM-2013 |
| Press Force (tons) | 100 | 160 | 200 |
Bale Diameter (mm) | 90 | 120 | 130 |
Motor (kw) | 11 | 18.5 | 22 |
System Pressure (mpa) | 25 | 25 | 25 |
| Equipment Dimensions (mm) | 2210×1050 ×1890 | 3220×1320 ×2400 | 3300×1420 ×2530 |
| Equipment Weight (kg) | 3000 | 4000 | 5000 |
| Operation Mode | Fully Automatic | Fully Automatic | Fully Automatic |
Material Testing
A high-performance Single Output Metal Chip Briquetter suitable for processing various metal chips, primarily used in metal processing and recycling.
Danel
"As a recycling company in Malaysia, we have always been on the lookout for equipment that can optimize our aluminum chip processing workflow. After learning about ENERPAT's BM4015 Metal Chips Briquetter Line, we found that its high efficiency and environmentally friendly features perfectly matched our company's needs. During our on-site visit to the ENERPAT factory, we witnessed the production process and technical capabilities of the equipment firsthand, which gave us great confidence in the BM4015. Since we started using it, the BM4015 has not only significantly improved our production efficiency but also helped us better achieve our environmental sustainability goals. Our collaboration with ENERPAT has been very pleasant, and we look forward to more opportunities to work together in the future."
Chen
"As a manufacturer of elevator components, we need to handle a large volume of iron shavings every day. After comparing several suppliers, we ultimately chose ENERPAT's BM-1612 steel briquette machine line for iron shavings. Since our company is located close to the ENERPAT factory, we had numerous on-site measurements and discussions with the ENERPAT team to ensure a perfect fit for the equipment. The BM-1612 has not only enhanced our iron shavings processing capacity but also significantly saved storage space and reduced transportation costs, which is very important for us. We are also very satisfied with the professional service and quick response from the ENERPAT team. Choosing ENERPAT as our partner was a wise decision, and we will continue to select ENERPAT in the future."
