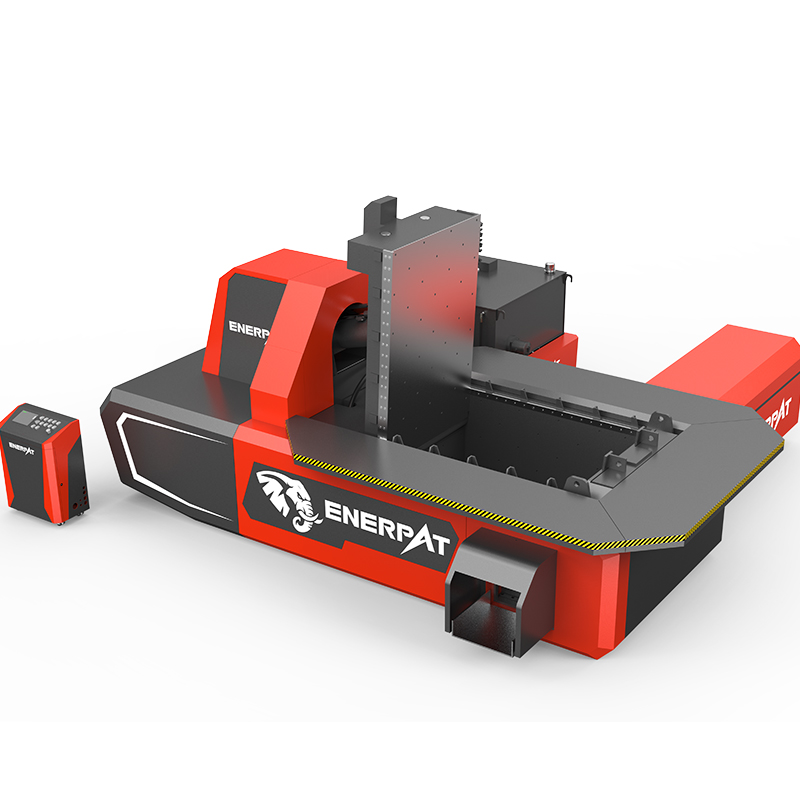

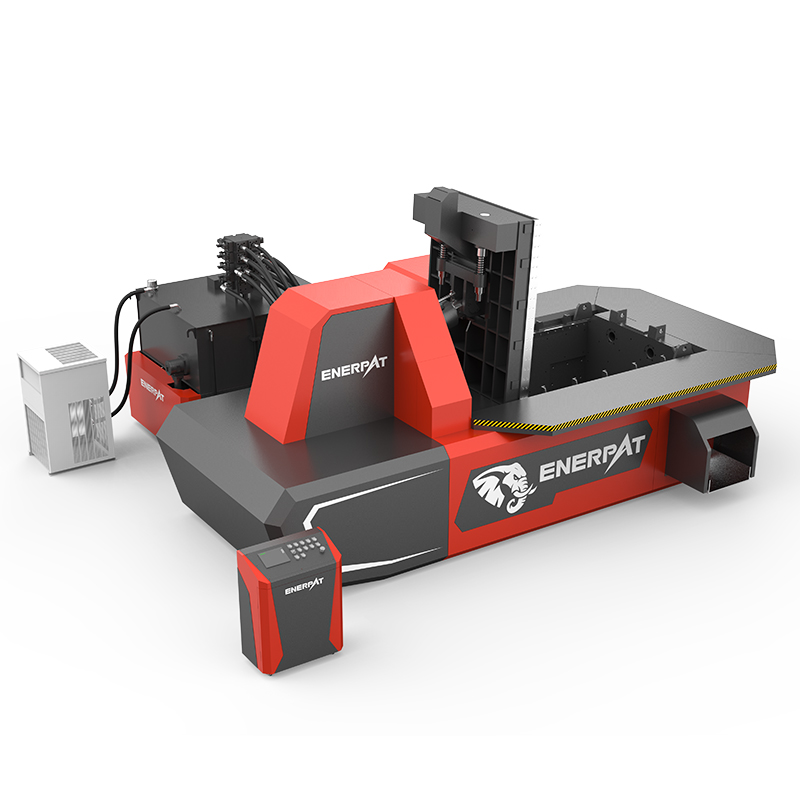

 | ENERPAT Versatile Scrap Metal Baler The ENERPAT AMB-L Series is a versatile scrap metal baler, also known as a scrap metal compactor, metal scrap baling machine, or metal recycling baler. Featuring a unique lid design and strong pressure capabilities, it can compress a variety of high-hardness, large-sized, and dense materials into compact and uniform metal bundles. Once the waste metal is compressed and packaged, its volume is reduced, making it more convenient for storage and transportation. This process also enhances melting rates and lowers smelting costs. |
Operating Principle
Material Feeding:
Materials are transported to the metal baler's compression chamber using forklifts and unloading devices.
Hydraulic Compression:
Under the drive of the hydraulic system, waste metal is compressed into compact metal bundles.
Automatic Bundle Ejection:
The metal bundles are automatically pushed out through a small door using a hydraulic cylinder.
Product Specification Sheet
| Model | AMB-L1270-125T | AMB-L1480-160T |
| Press Force | 125T | 160T |
| Press Chamber | 1200x700x600 mm | 1400x800x700mm |
| Motor Power | 15 kw | 22 kw |
| Pump | 63 ml/r | 160 ml/r |
| Bale Size | 300x300 mm | 350x350 mm |
| Capacity (Steel) | 1.0-1.5 tons per hour | 2.0-2.5 tons per hour |
| Model | AMB-L1812-200T | AMB-L2014-250T |
| Press Force | 200T | 250T |
| Press Chamber | 1800x1200x800 mm | 2000x1400x900 mm |
| Motor Power | 2x22 kw | 2x22 kw |
| Pump | 2x160 ml/r | 2x160 ml/r |
| Bale Size | 400x400 mm | 500x500 mm |
| Capacity (Steel) | 3.0-3.5 tons per hour | 5.0 tons per hour |
| Model | AMB-L2520-250T | AMB-L2520-315T |
| Press Force | 250 T | 315T |
| Press Chamber | 2500x2000x1200 mm | 2500x2000x1200 mm |
| Motor Power | 2x30 kw | 2x45 kw |
| Pump | 2x160 ml/r | 2x250 ml/r |
| Bale Size | 500x500 mm | 600x600 mm |
Material Testing
The ENERPAT AMB-L Series is a versatile scrap metal baler, also known as a scrap metal compactor, metal scrap baling machine, or metal recycling baler. It features a cleverly designed lid that enhances stability and durability. Utilizing hydraulic principles, it cold-presses materials into high-density metal bundles without the need for adhesives, preserving the metallic properties. The main oil cylinder compression force ranges from 100 to 1500 tons, and the motor power spans from 30 to 300 kW, accommodating the diverse needs of various customers.
